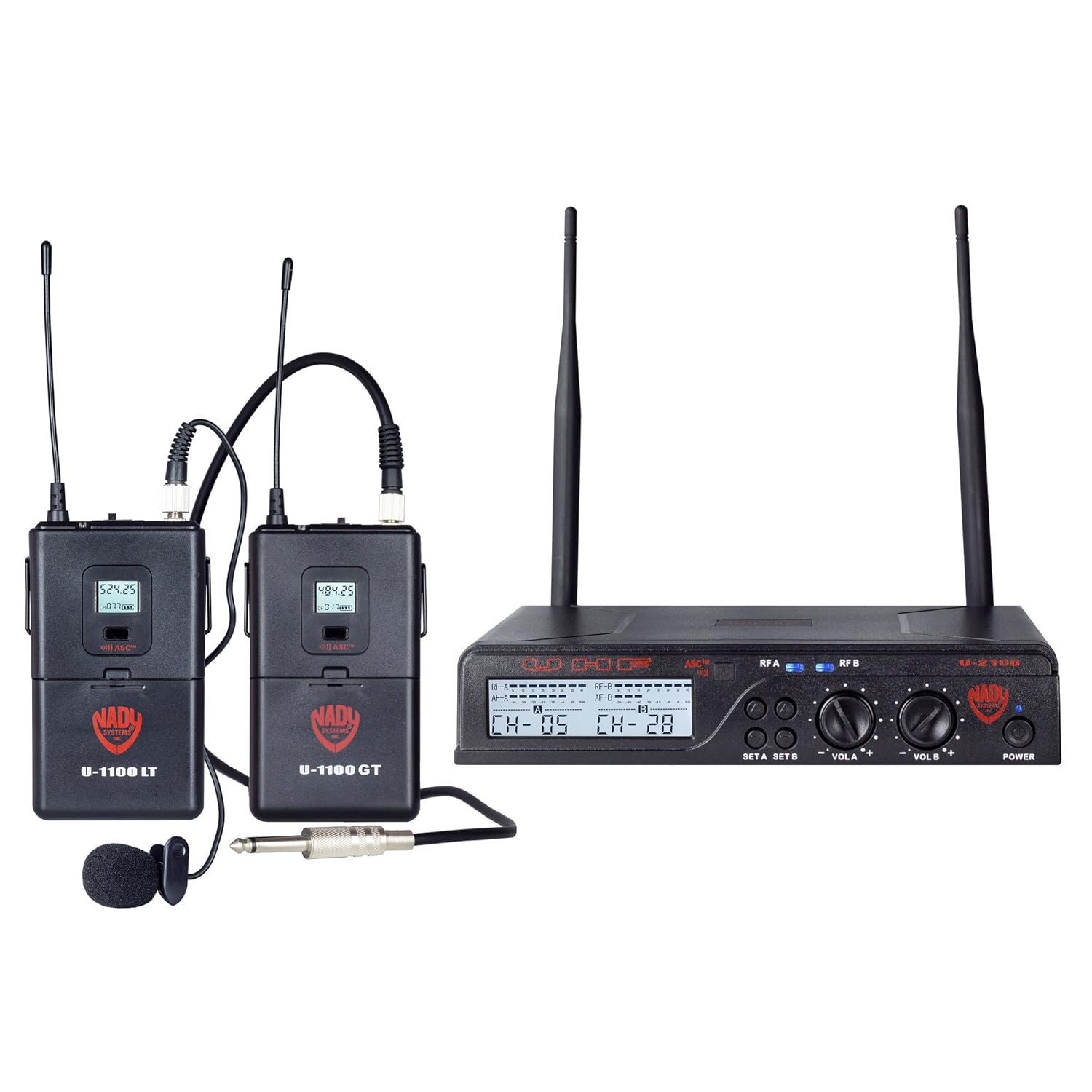

UHF Wireless Lavalier Microphone and Instrument/Guitar System D3147

NADY U-2100LT/GT

Dual 100-Channel UHF Wireless System

Nady’s award-winning wireless innovation and expertise are evident in the latest addition to their line of professional UHF wireless systems. The U-2100 is jam-packed with user friendly features: Unsurpassed UHF PLL wireless performance. Clear, transparent audio with full frequency response. 120 dB dynamic range. Operation up to 500’(line-of-sight). Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location. Rugged all ABS housing.

The U-2100 (with dual receiver for dual receiver operation), has 100 selectable UHF frequencies per transmitter for interference-free operation. Take it anywhere you need it and experience pristine audio on stage or off. Set up is amazingly quick and easy with ASC download that sends selected channel information to transmitter via infrared sender.

Overall System Performance Frequency response: 50Hz~18kHz ±3dB Dynamic range: 120dB Harmonic Distortion: <0.5% Operating range: 150-250 feet typical, 500 feet max

U-2100 receiver Output Impedance: 1kΩ (unbalanced) and 600Ω (balanced) Audio Outputs: Adjustable unbalanced summed line audio output; fixed balanced microphone level audio output Power requirement: 13.5VDC/0.4A Antennas: Removable BNC antennas

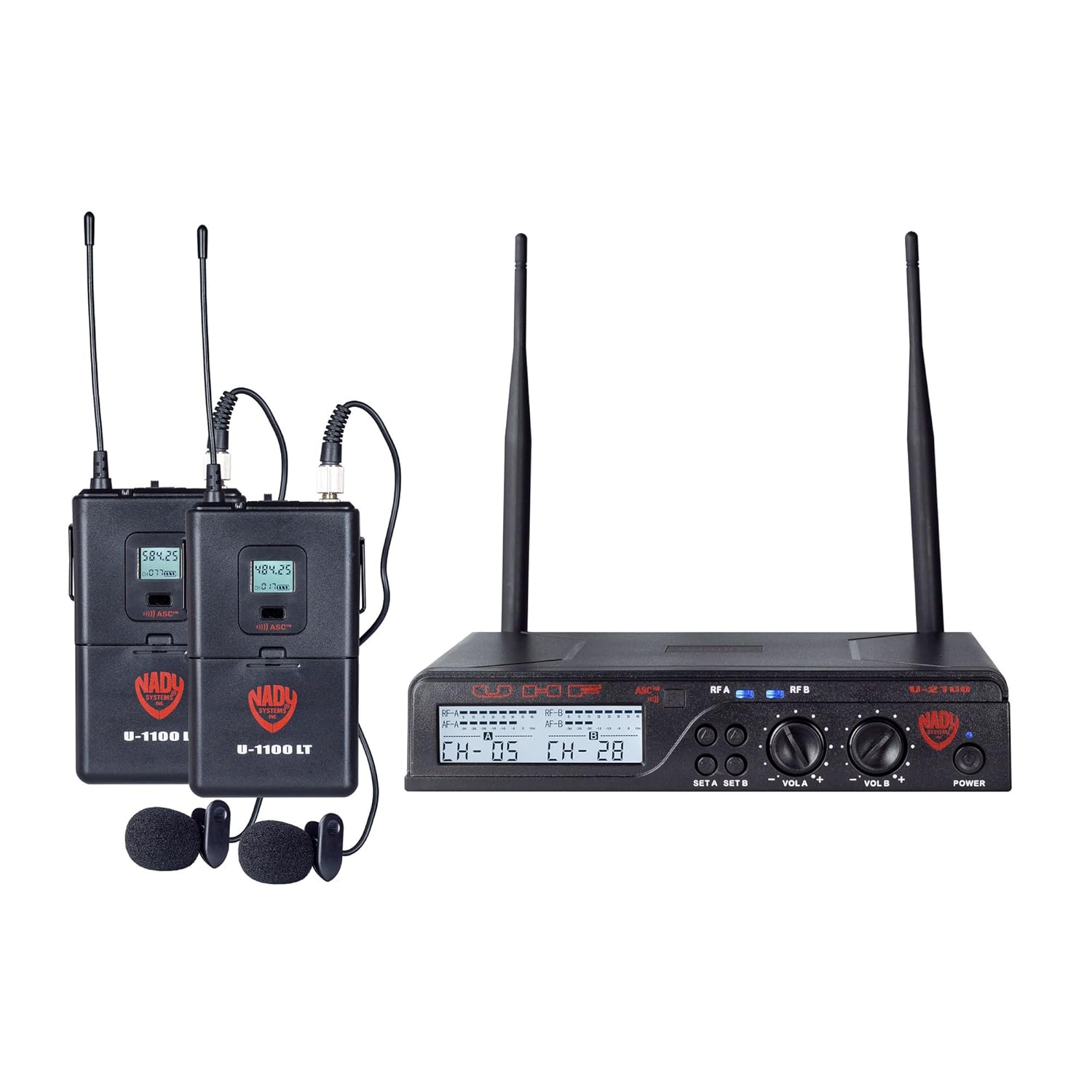

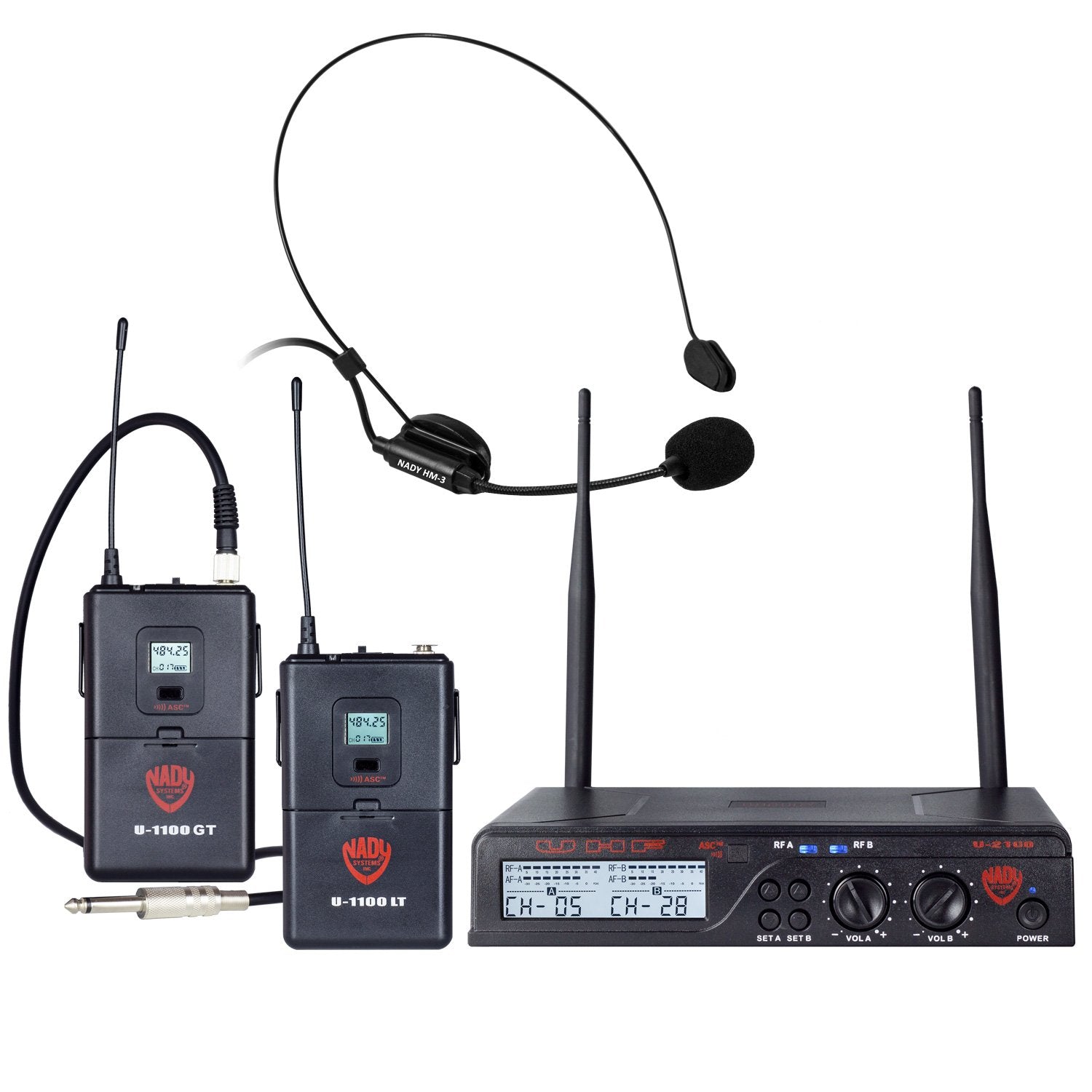

U-1100LT Bodypack Transmitter Compatible with all Nady lapel and headworn microphones with a 3.5mm locking plug such as the LM-14, HM-1, HM-3, HM-5U, HM-10, HM-20U, HM35/45U Input Impedance: 5kΩ Input Connector: locking 3.5mm mini-jack Antenna Type: External attached Battery Type: 2 x AA alkaline or NiMH Battery life: 8-10 Hours typical

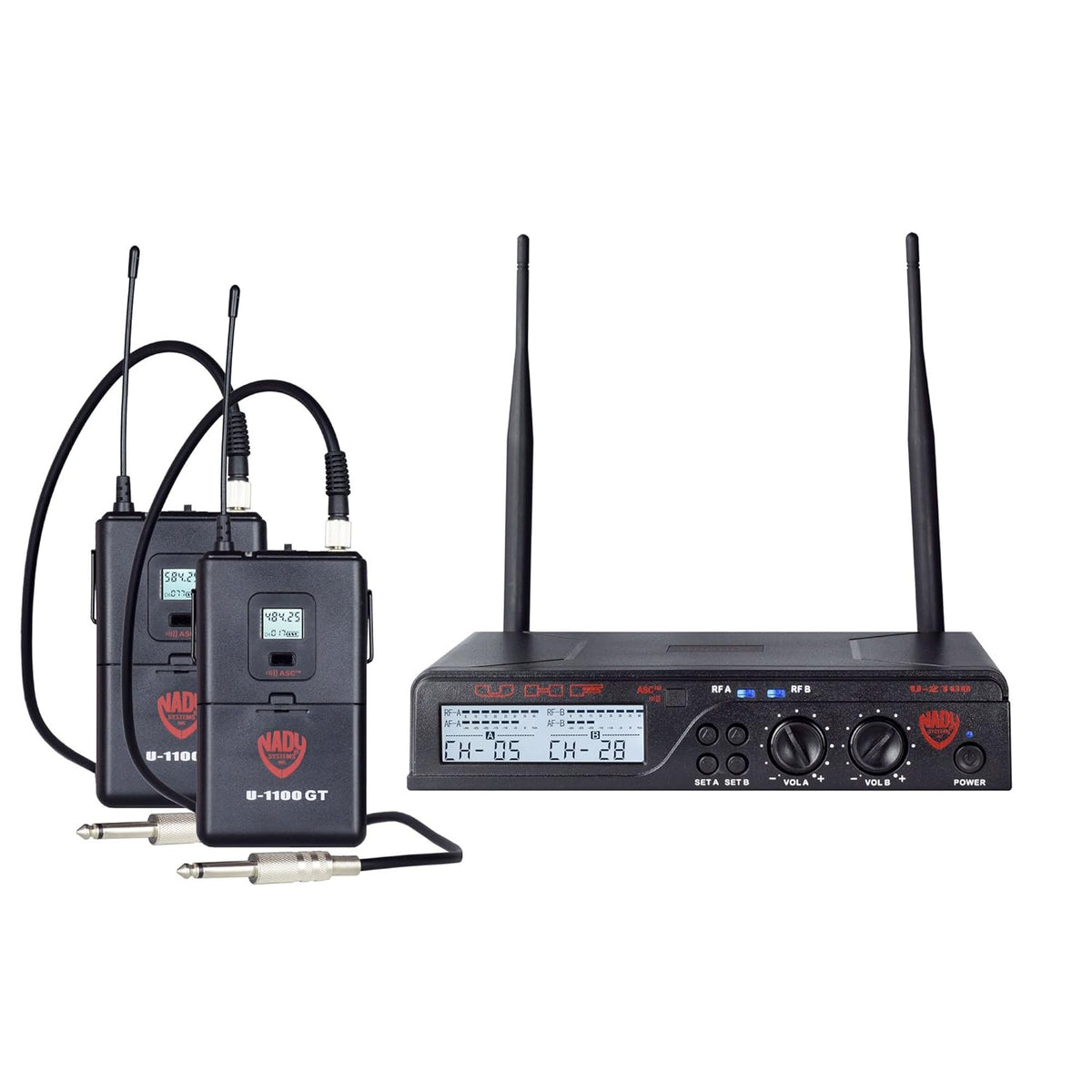

U-1100GT Bodypack Transmitter Input Impedance: 500kΩ Input Connector: locking 3.5mm mini-jack Antenna Type: External attached Battery Type: 2 x AA alkaline or NiMH Battery life: 8-10 Hours typical
